Truck Series

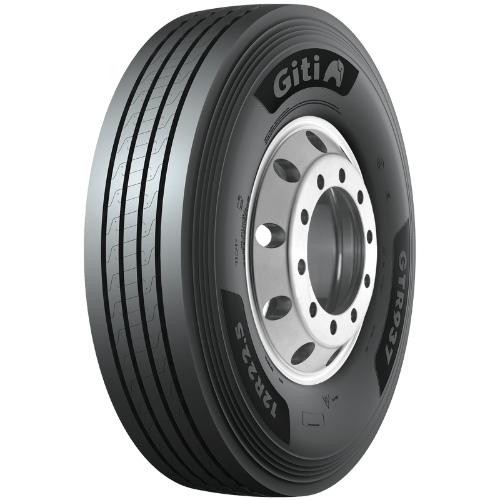

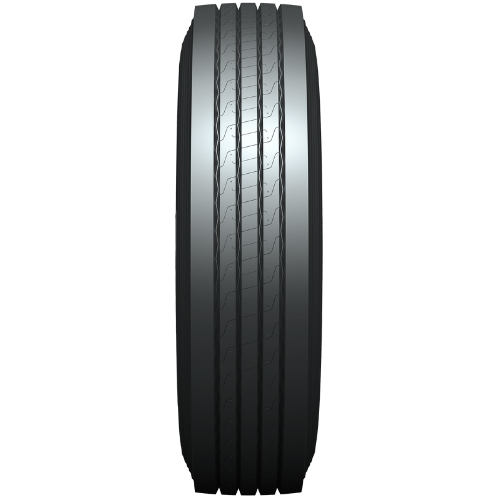

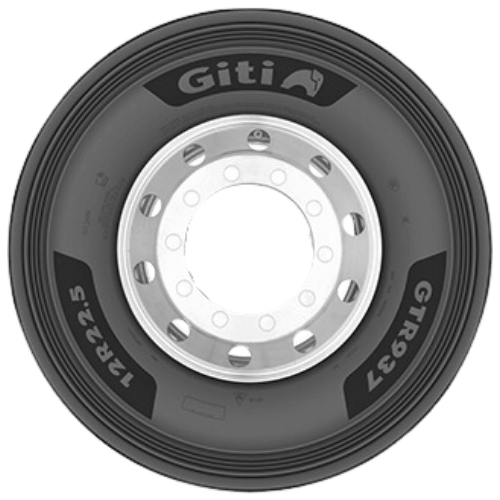

GTR937
-
Trailer
-
Regional
-
PLY RATING18 -
SPEED RATINGM -
LOAD RATING152/149
Download pdfFEATURE & BENEFITS
-
1 Optimal tread stiffness distribution design
Equalized force distribution on tread, delivers good wear performance and resists irregular wear -
2 Enhanced crown and sidewall Longer mileage rigidity
Delivers better wear performance by reducing the movement of tread crown -
3 Special wear-resistant compound
Promotes long wear life -
4 Optimal rib ratio with angled groove design
Enhanced crown stiffness to generate less deformation and less energy loss, resulting in low rolling resistance
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
- PR 20PR
- Load Index 160/156
- Speed Rating K
- Approved Rim 8.50
- Outer Diameter (mm) 1226
- Tread Depth (mm) 20.2
- Max Load (kg) 4500/4000
- Max Pressure (kPa) 850/850
- Max Pressure (PSI) 123/123
- PR 20PR
- Load Index 160/156
- Speed Rating K
- Approved Rim 8.50
- Outer Diameter (mm) 1226
- Tread Depth (mm) 20.2
- Max Load (kg) 4500/4000
- Max Pressure (kPa) 850/850
- Max Pressure (PSI) 123/123
| Tire Size |
PR | Load Index |
Speed Rating |
Approved Rim |
Outer Diameter (mm) |
Tread Depth (mm) |
Max Load (kg) |
Max Pressure kPa
PSI
|
|
|---|---|---|---|---|---|---|---|---|---|
| 12R22.5 | 18 | 152/149 | M | 9.00 | 1085 | 15 | 3550/3250 | 930/930 | 135/135 |
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
| PRODUCT SEGMENT | Regional |
|---|---|
 One way traveldistance (km) |
< 50 |
 On the way un-paved road (km) |
2 - 10 |
 Average speed(km/h) |
< 50 |
Assessing Vehicle Suitability
- Is your vehicle a dump truck? Is it within 300 hp?
- Are your single trips usually within 100 km?
- During single trips, are harsh road conditions such as gravel, muddy, and mining roads approximately 2-10 km long?
- Is your vehicle frequently overloaded? Is your vehicle usually over 50% of the specified weight?
- When carrying full loads, is the average speed of your vehicle less than 50 km/h?
GET SUPPORT
Our network of more than 3,000 dealer is connected to your needs 24/7
6x2 Truck
4 Front Wheels + 4 Rear Wheels
4x2 Tractor
+3-Axle (1-1-3)
6x4 Tractor
+3-Axle Trailer (1-2-3)
8x4 Tractor
4 Front Wheels + 8 Rear Wheels
6x2 Tractor
+3 Axle Trailer (1-1-1-3)
